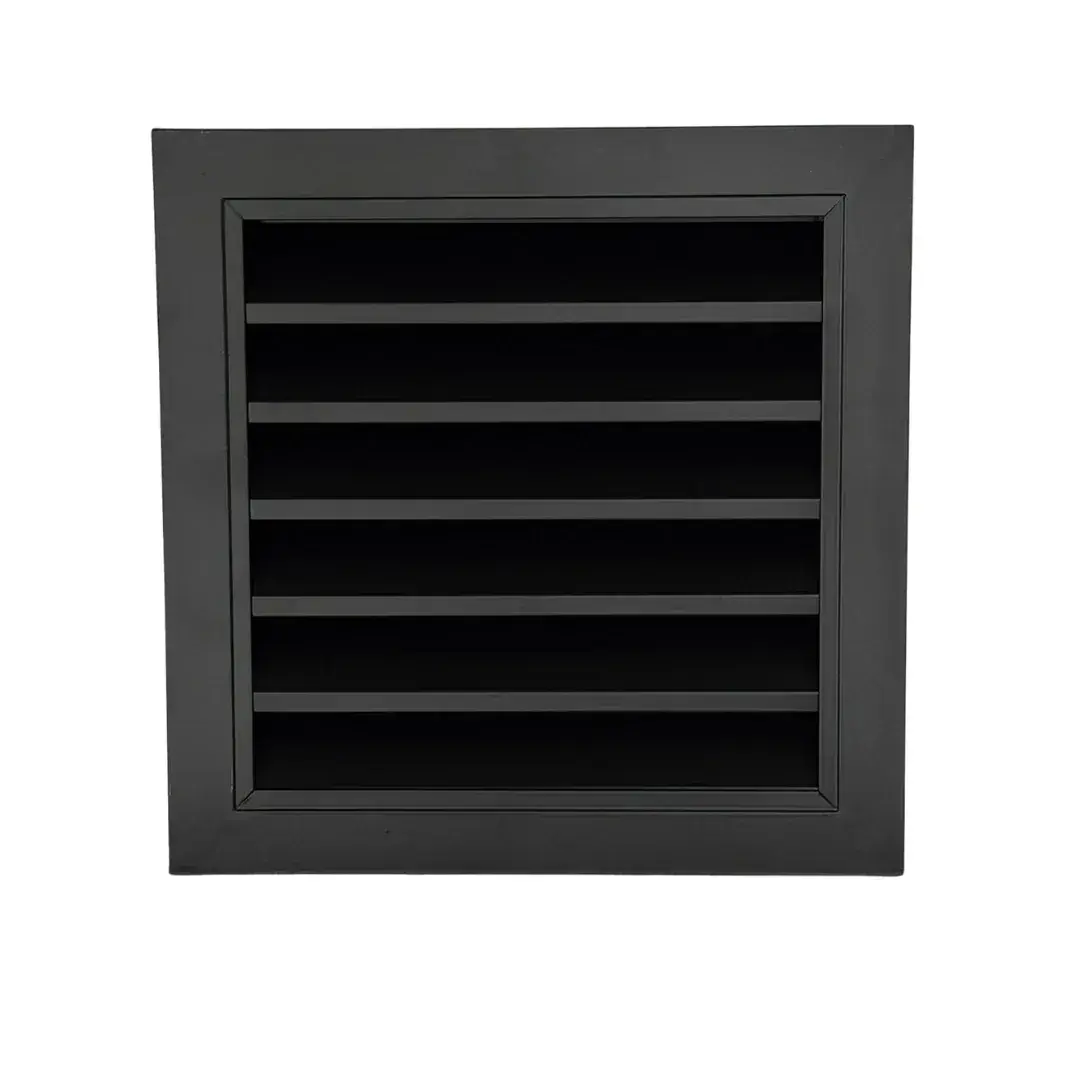

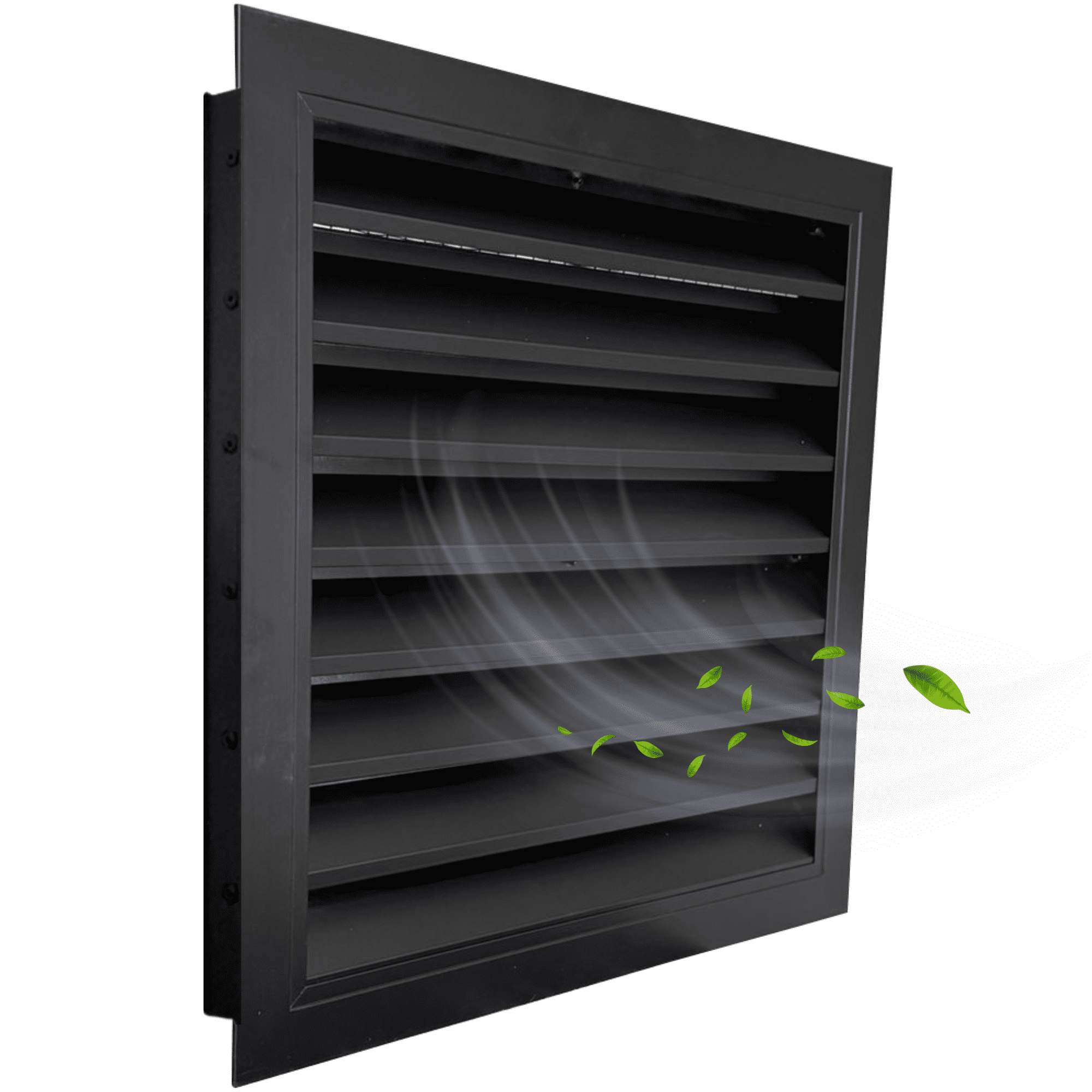

Fixed Louvre Grilles, Aluminum with Screen - Anodized Aluminium Black Finish

Product Description

Designed for reliable ventilation with maximum weather and pest protection, CRW Fixed Louvre Grilles are suitable for both exterior and interior applications. The black powder coated finish provides a durable, modern appearance with enhanced resistance to corrosion, scratches, and wear.

Applications

• Ideal where preventing rain, snow, and wind ingress is a priority

• Suitable for residential, commercial, and industrial use

• Common applications include ventilation of ducting, crawlspaces, utility rooms, plant rooms, and general airflow openings

• Can be installed in walls, ceilings, or doors of various constructions, including brick, concrete, metal, and wood

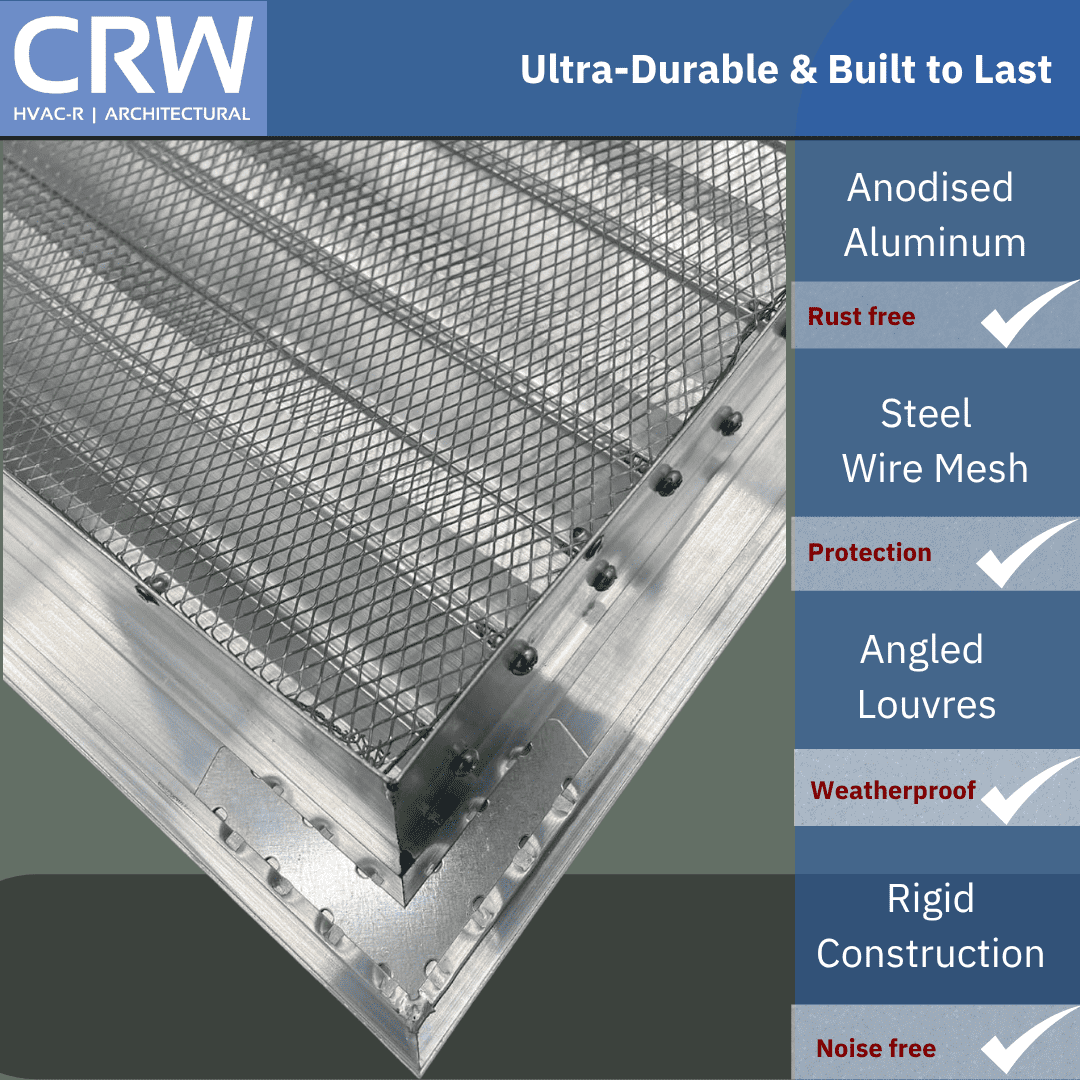

Key Features

• Heavy-duty aluminum construction for long-term durability

• Frame thickness: 3.0 mm

• Blade thickness: 2.0 mm

• Black powder coated aluminum finish for superior corrosion resistance and a clean, professional look

• Weatherproof design with deep, high-angled louvers to deflect rain, snow, and wind

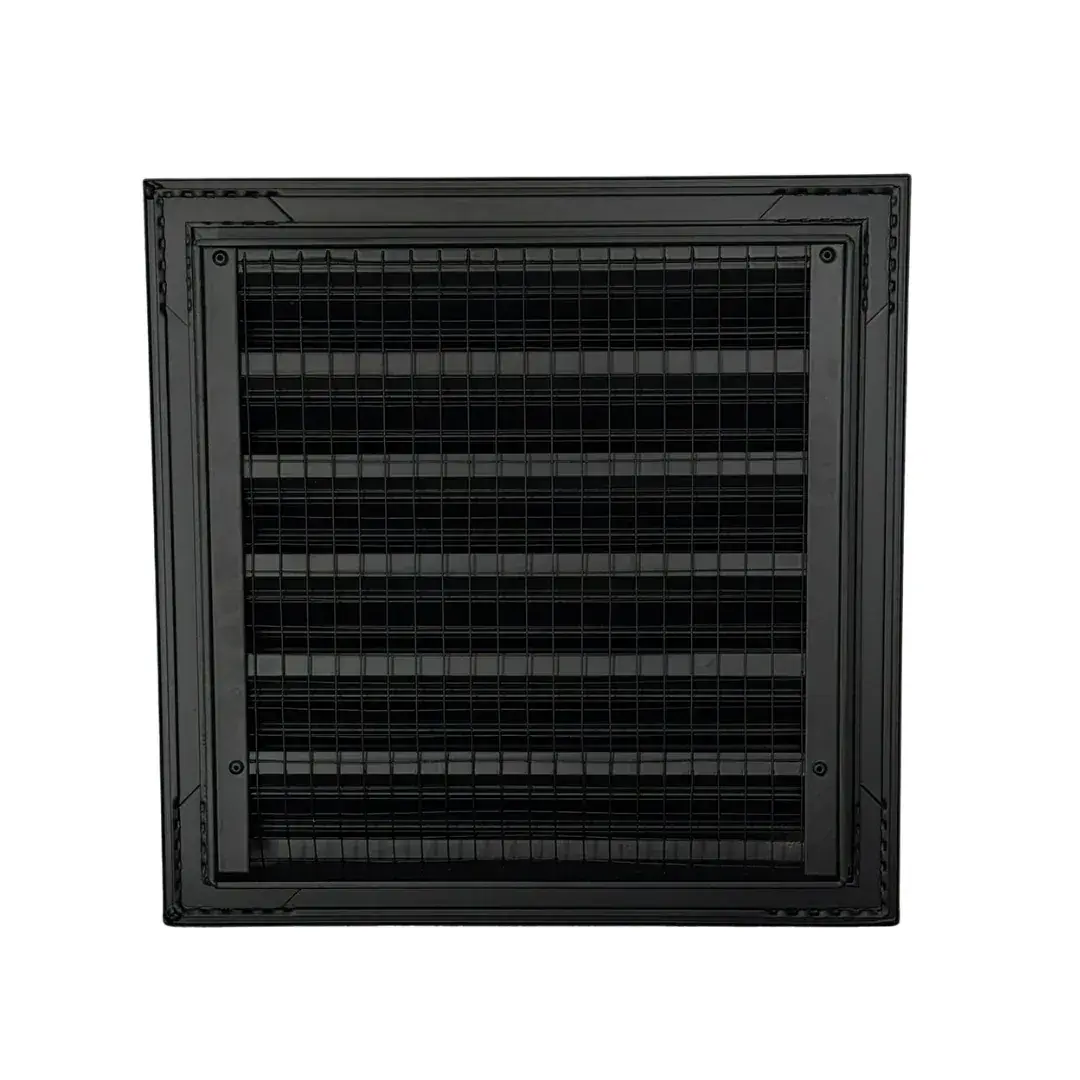

• Pest-proof galvanized steel bird mesh to prevent entry of insects, birds, and small animals

• Rigid aluminum frame and louvers for vibration-free, noise-free operation

• Securely packaged: shrink-wrapped and tightly packed in a cardboard box for safe transport

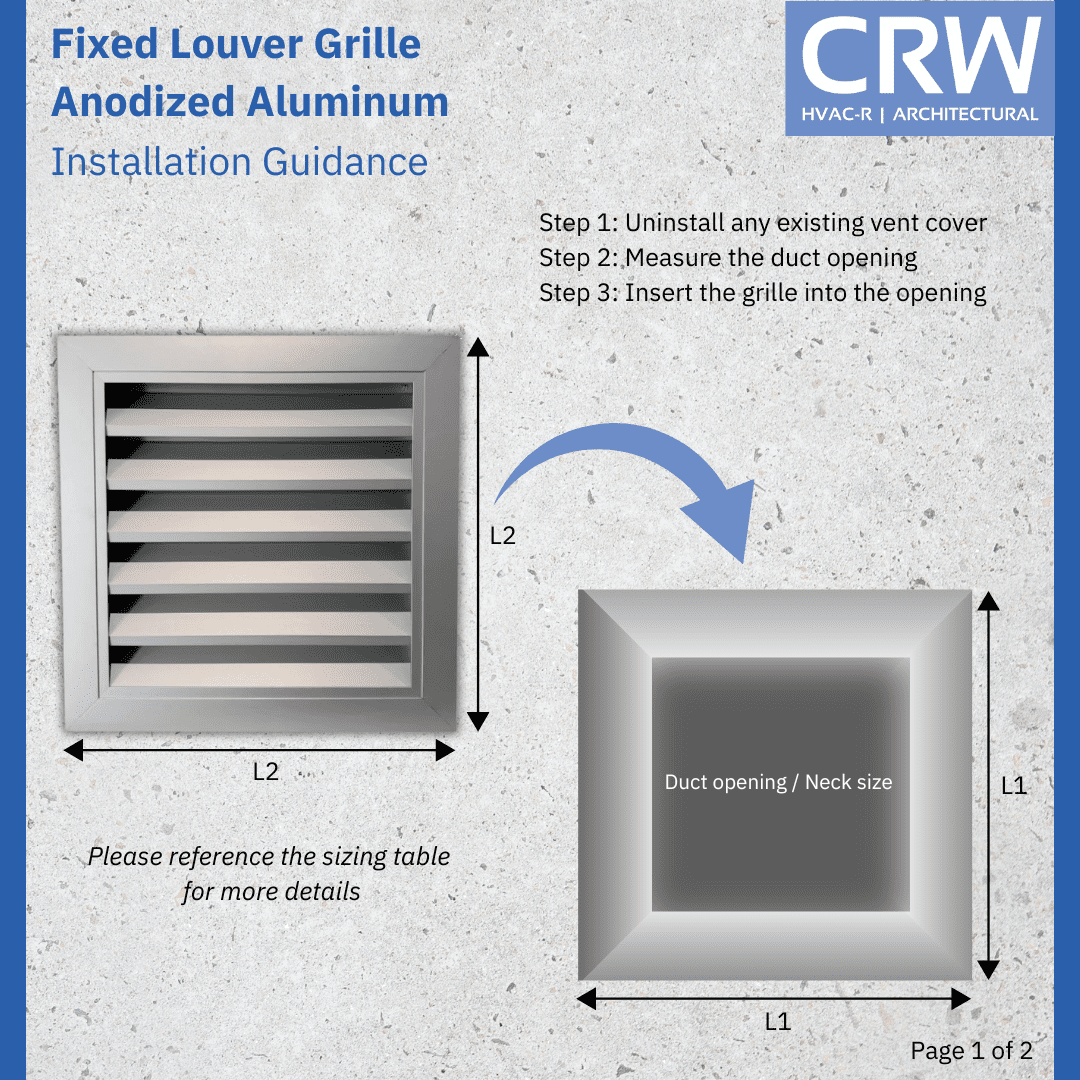

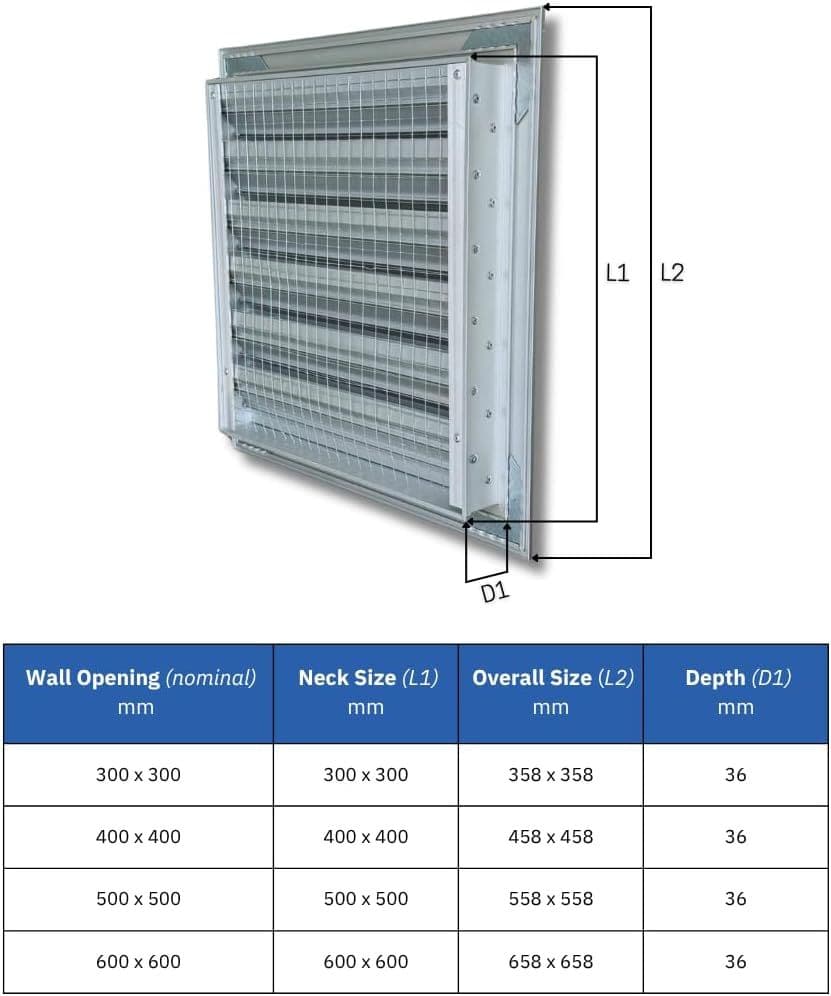

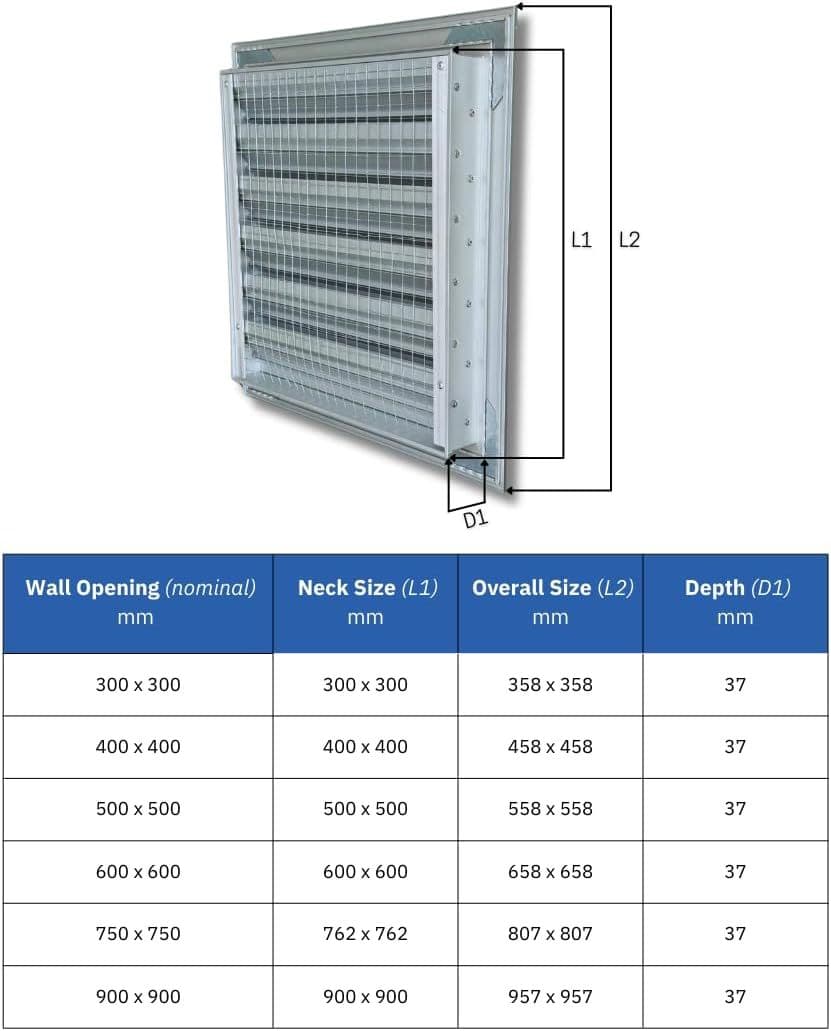

Sizing Note

All sizes listed are defined as Neck Size.
The neck size refers to:

• The actual opening / ventilating area once the grille is installed

• The required cutout size in the wall, ceiling, or door for installation

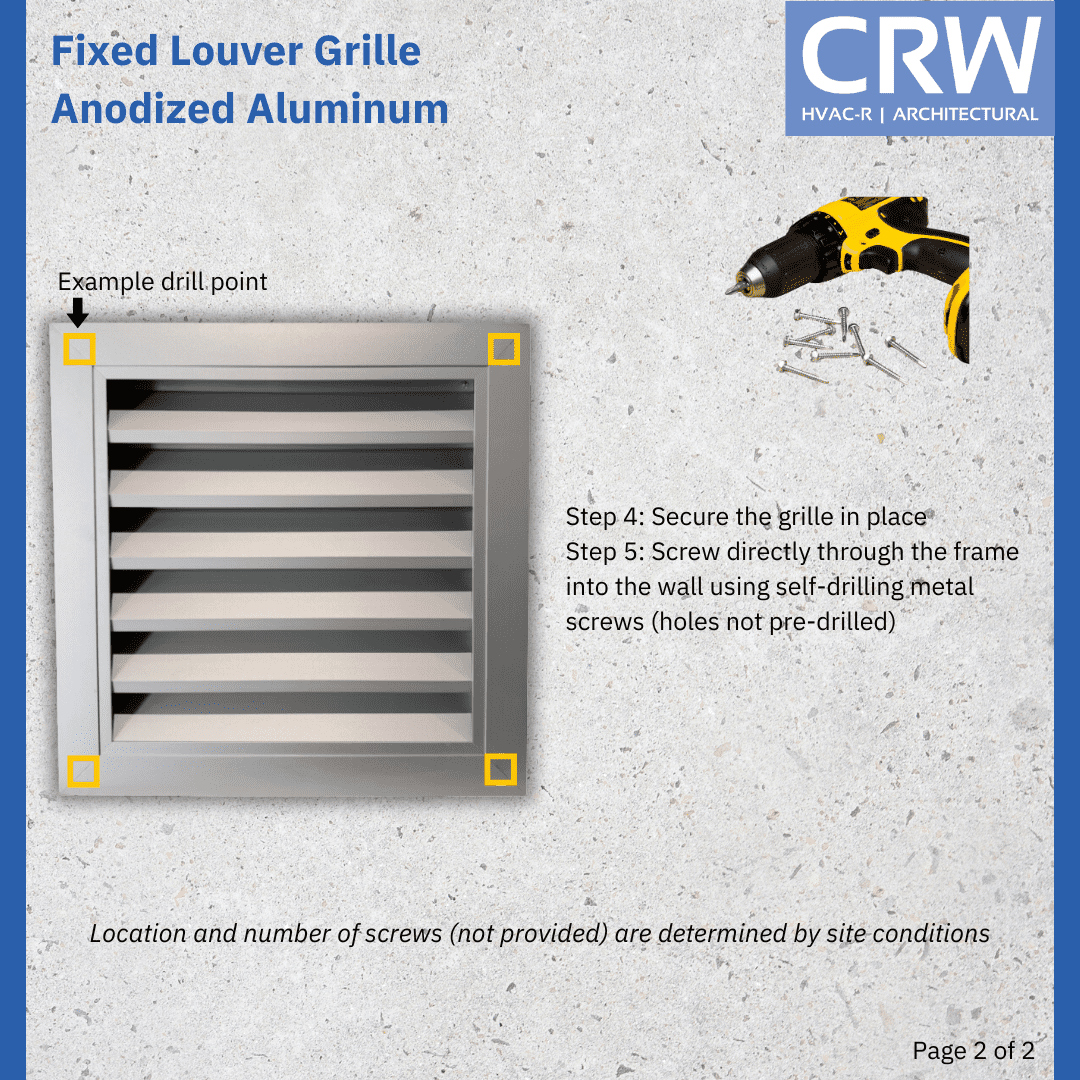

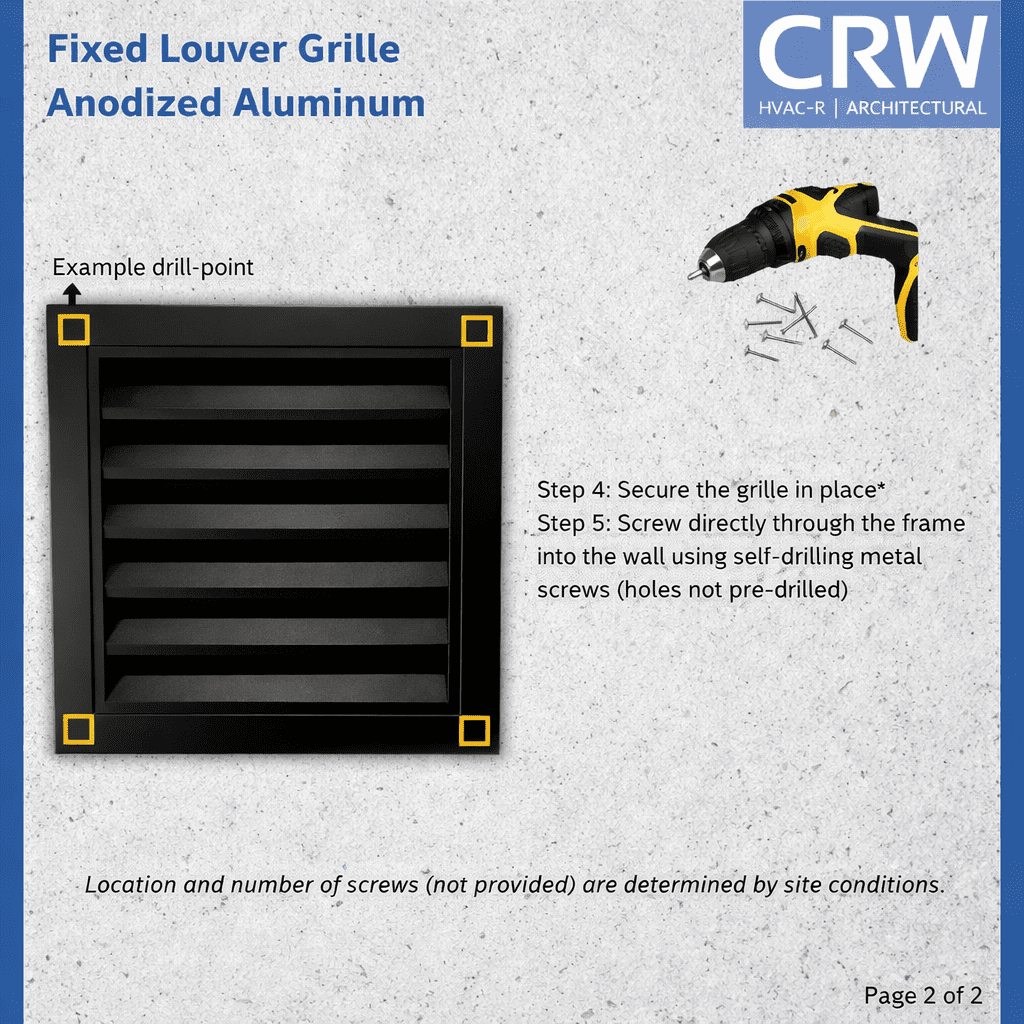

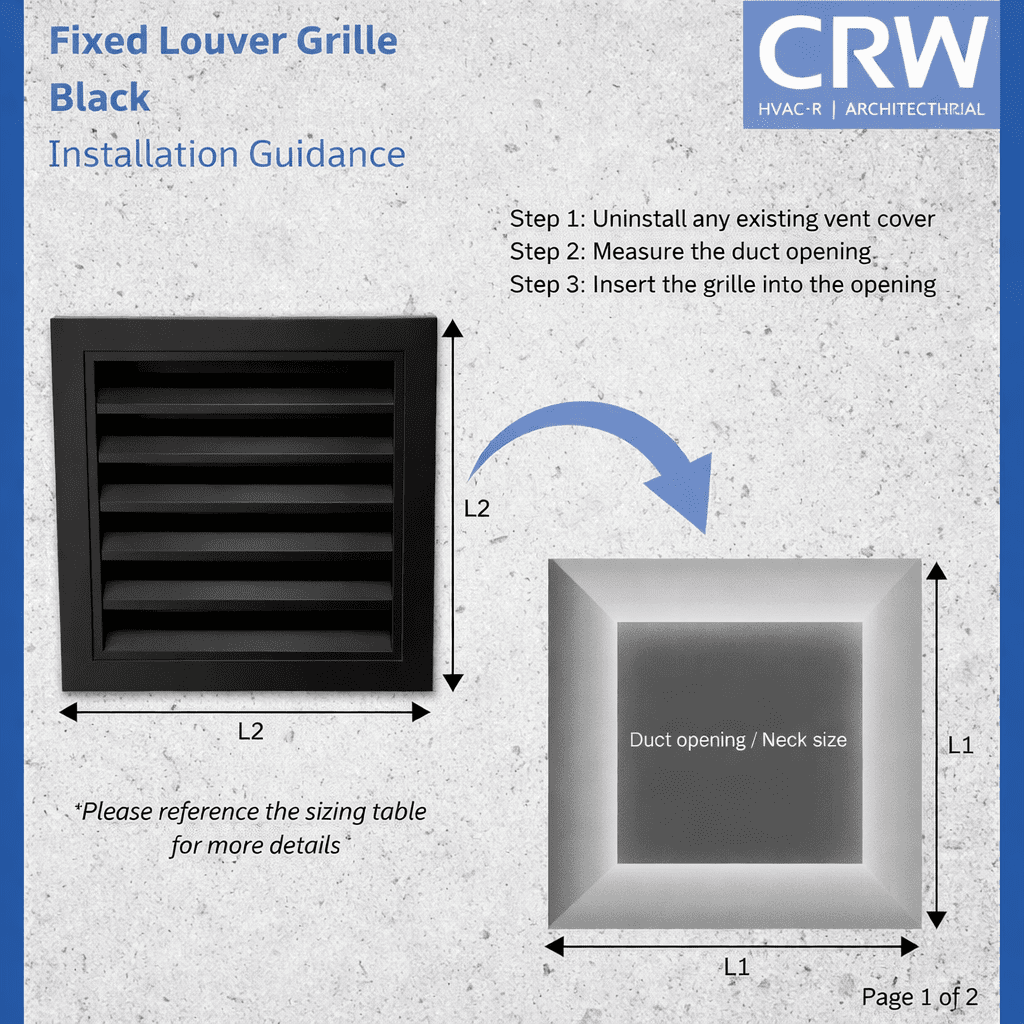

Installation

• Self-tapping screws (not included) may be used

• Screws can be fixed through the grille face or the neck, depending on installation preference

• Suitable for direct fixing to walls, ceilings, doors, or timber frames

Downloads

Specification Sheet
