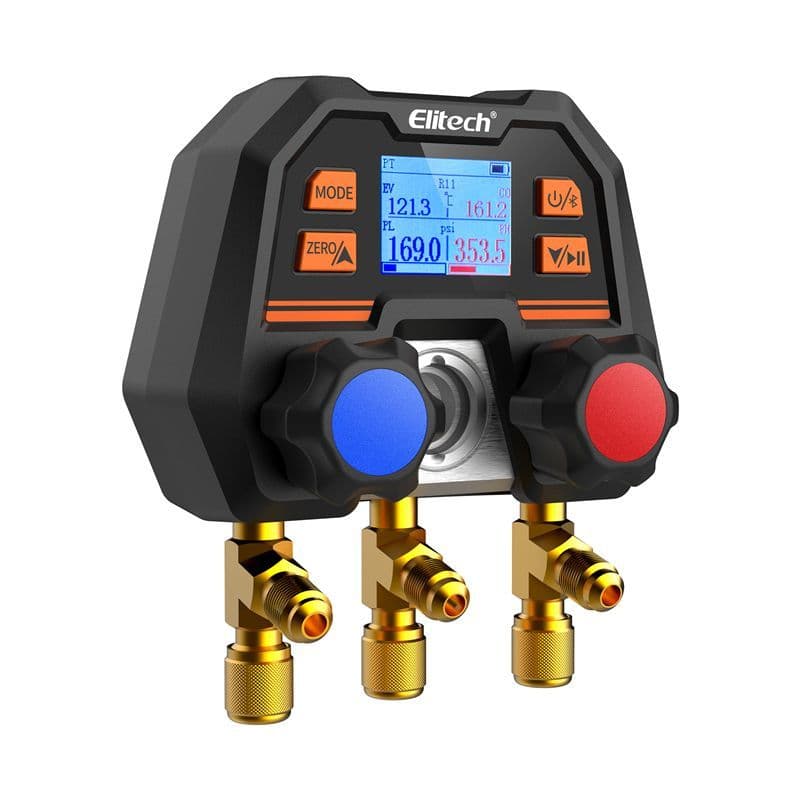

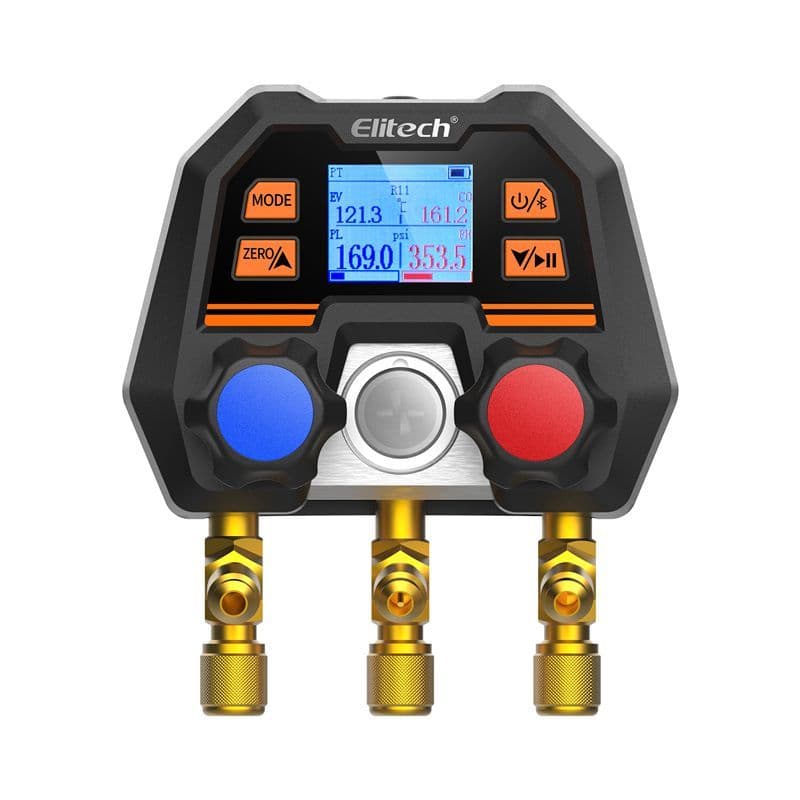

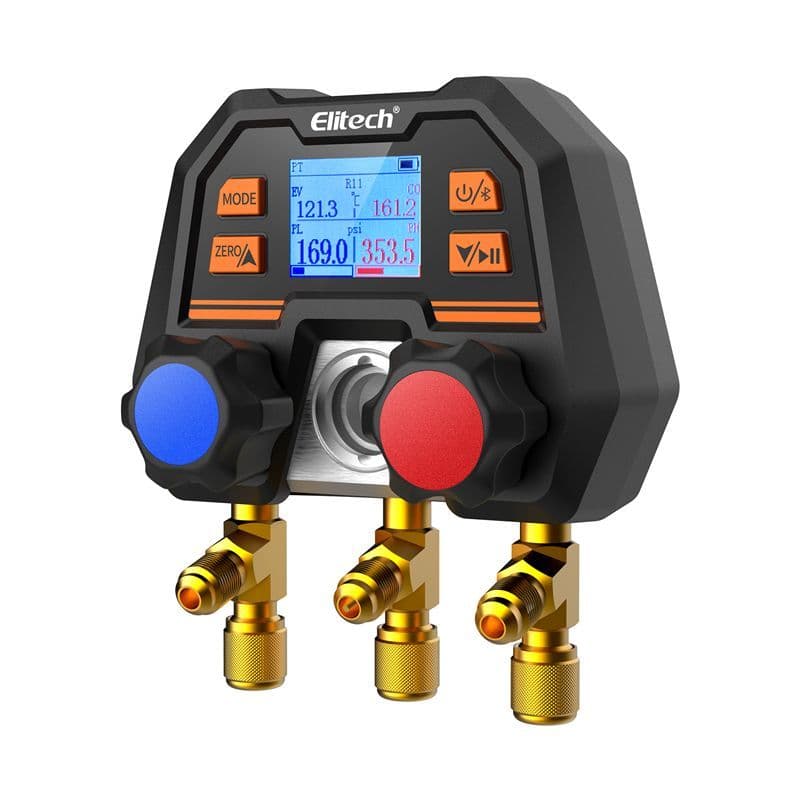

Elitech MS-100 Plus Digital Manifold Gauge for HVAC & Refrigeration

 Elitech MS-100 Plus Digital Manifold Gauge for HVAC & Refrigeration

Product Description:

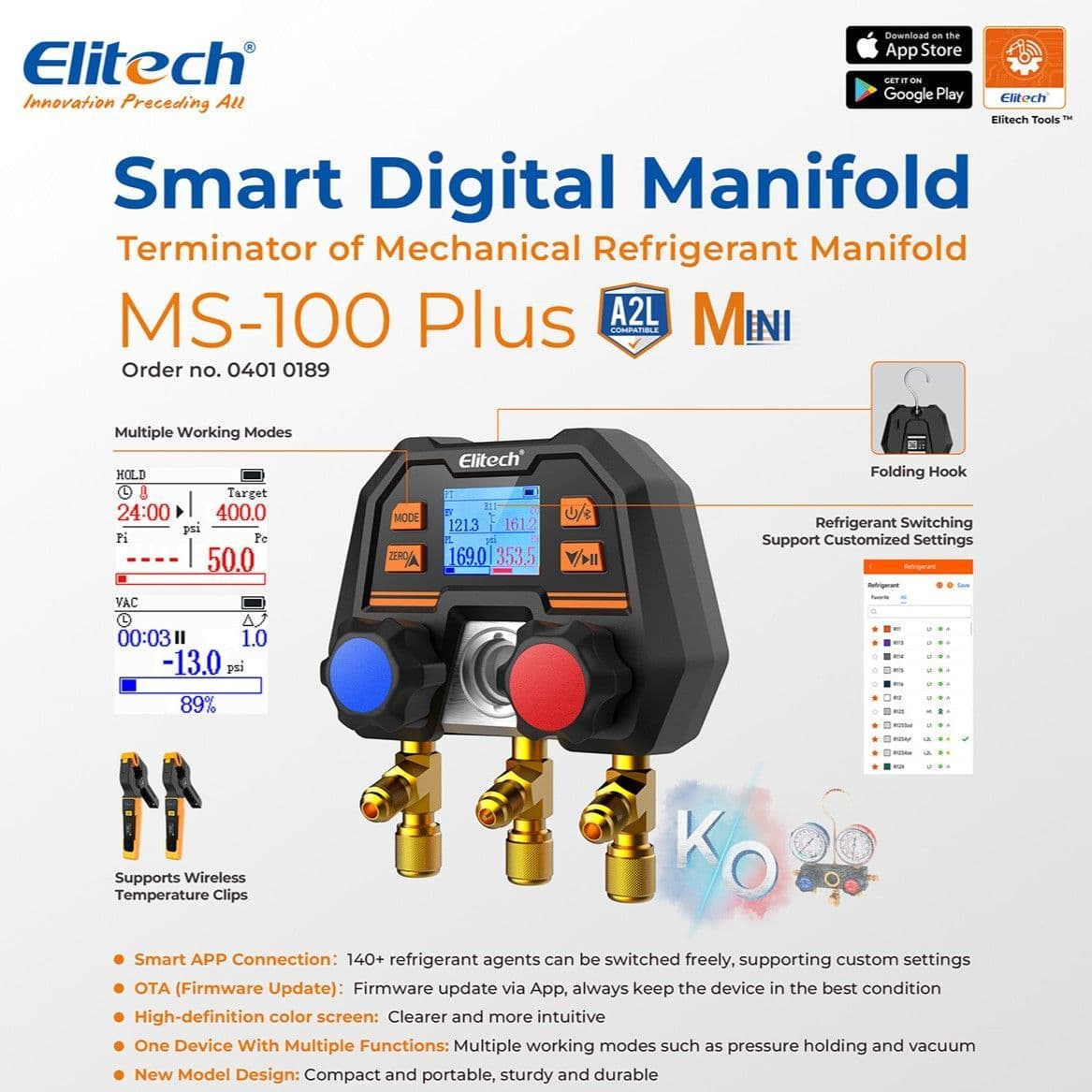

The Elitech MS-100 Plus Digital Manifold Gauge is built for day-to-day troubleshooting and servicing of refrigeration and HVAC systems. It integrates pressure-temperature mode, hold pressure mode, vacuum mode and data recording mode into a single compact unit, helping engineers work more efficiently on site.

The MS-100 Plus features a colour LCD screen for clear viewing and supports Bluetooth connectivity, allowing data viewing and refrigerant updates through the companion app. According to the manual, the product supports app-based refrigerant updates and comes with 18 default refrigerant types preloaded.

Technical performance includes a pressure measurement range of -14.7 to 800 psi, ±0.5% FS accuracy, and 0.5 psi resolution. It supports pressure units of psi, kPa, MPa, bar, and inHg, and temperature units of °C and °F.

The selectable refrigerants listed in the manual are: R11, R12, R13, R22, R290, R32, R134a, R404A, R410A, R407C, R408A, R409A, R458A, R448A, R449A, R500, R502, R600.

Key Features:

1. Comprehensive Functionality: Integrates pressure-temperature measurement, pressure holding, vacuum, and data recording modes into a single device.

2. Extensive Refrigerant Support: Supports over 140 types of refrigerants, with instant updates via the Elitech app for flexible and efficient selection.

3. App-Controlled Monitoring: Utilizes Bluetooth connectivity to sync with the Elitech app, enabling real-time data monitoring, analysis, and report generation.

4. Durable and Energy-Efficient Design: Features a drop-proof construction and ultra-low energy consumption, providing up to 200 hours of battery life with replaceable batteries.

5. User-Friendly Interface: Equipped with a clear digital display and intuitive controls, facilitating easy operation for both novice and experienced HVAC technicians.

Key Features & Technical Specification:

• Product Type: Digital manifold gauge for HVAC and refrigeration servicing
• Model: Elitech MS-100 Plus
• Measurement Functions:
  • Pressure and temperature measurement
  • Hold pressure (leak) test mode
  • Vacuum test mode
  • Data recording mode
• Pressure Performance:
  • Range: -14.7 to 800 psi
  • Accuracy: ±0.5% FS
  • Resolution: 0.5 psi
  • Units: psi, kPa, MPa, bar, inHg
• Temperature Measurement:
  • Units: °C / °F
• Refrigerant Support:
  • 18 built-in refrigerants
  • Includes: R11, R12, R13, R22, R290, R32, R134a, R404A, R410A, R407C, R408A, R409A, R458A, R448A, R449A, R500, R502, R600
  • App-based refrigerant updates available
• Connectivity:
  • Bluetooth enabled
  • Supports app connection for data viewing, logging, and refrigerant updates
  • Note: Not app-controlled (no remote operation)
• Display:
  • Colour LCD screen
• Connections:
  • 1/4 SAE interface
  • 1/4 SAE valve core
• Power Supply:
  • 2 x AAA batteries
  • Battery life: approx. 100 hours (with dimmed display)
• Physical Specifications:
  • Dimensions: 110 x 75 x 135 mm
  • Weight: approx. 700 g
