Product Description

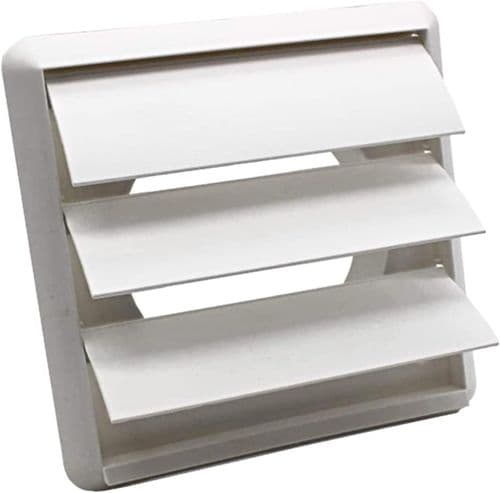

Gravity Grille 150mm External Dimension with 100mm / 4 inch Round Rear Spigot and Non-Return Shutters Ducting Air Vent


Gravity grille / Ducting Air vent with non-return shutter

Available in 3 colours.

  • Beige Plastic Ducting Air Inlet / Air Outlet with Gravity Shutters. 150mm x 150mm external dimension with 4 inch / 100mm round male rear spigot on the back of the grille for indoor or outdoor use.
  • Non-return shutter flaps close automatically when not in use. Stops unpleasant odours, noises, or draughts flowing back through your duct. Gravity flap - no need for springs that could break.
  • Easy to install, just push-fit duct and fittings together. Perfectly suited Bathroom or Kitchen extractor fan, Hydroponics fan, or In-Line Extract Fan.
  • This grille can be used as a part of a long ductwork run for a variety of purposes including whole house ventilation, passive ventilation, positive input, air conditioning, HVAC, and Heat Recovery Systems.
  • Suitable to use in compliance with Part F Building Regulations. Airflow performance independently tested by BSRIA or BRE. Free Air: 7200mm2. Static Pressure Drop in Pascals: 15 l/s = 10.94 Pa - 30 l/s = 18.59 Pa - 60 l/s = 24.21 Pa.

Plastic air exhaust outlets round vent with non-return shutter flaps which close automatically when not in use to prevent unpleasant odours noises or draughts flowing back through your duct into your property.

Easy to install just push-fit together & seal if required using a method of your choice (Popular options include Mastic Sealant Poly Cement or Tape).

Perfectly suited as an outlet for your Bathroom Toilet or Kitchen extractor fan Hydroponics In-Line Extract Fans or Cooker Hood.


Product Code
Gravity Grille GG4W

Delivery & Returns

As per our terms and conditions.

Customer Reviews

Gravity Grille 150mm External Dimension with 100mm/4" Round Rear Spigot Non-Return Shutter Ducting

Item in Stock (8 Available)

Product Code Gravity Grille GG4W
