Applications:
The Elitech WJL-6000S Halogen Leak Detector may also be used to:
It will respond to all halogenated (contains Chlorine of Fluorine) refrigerants. This includes, but is not limited to:
CFCs e.g.R12, R11,R500,R503 etc. HCFCs e.g. R22,R123, R124,R502 etc. HFCs e.g. R134a, R404s, R125 etc.
Blends such asAZ-50. HP62. MP39 etc.
Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the halogenated carrier gas).
Detect SF-6 in high voltage circuit breakers.
Detect most gases that contain chlorine, fluorine and bromine (halogen gases). Detect cleaning agents used in dry cleaning applications such as per chloroethylene. Detect halogen gases in fire-extinguishing system.
The Elitech WJL-6000 Halogen Leak Detector is incorporated with advanced leak detect technology. It's an ideal and economic halogen leak detector.
The Elitech WJL-6000S Halogen Leak Detector may also be used to:
It will respond to all halogenated (contains Chlorine of Fluorine) refrigerants. This includes, but is not limited to:
CFCs e.g.R12, R11,R500,R503 etc. HCFCs e.g. R22,R123, R124,R502 etc. HFCs e.g. R134a, R404s, R125 etc.
Blends such asAZ-50. HP62. MP39 etc.
Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the halogenated carrier gas).
Detect SF-6 in high voltage circuit breakers.
Detect most gases that contain chlorine, fluorine and bromine (halogen gases). Detect cleaning agents used in dry cleaning applications such as per chloroethylene. Detect halogen gases in fire-extinguishing system.
The Elitech WJL-6000 Halogen Leak Detector is incorporated with advanced leak detect technology. It's an ideal and economic halogen leak detector.
Features & Benefits
- Detects All Common Refrigerants
Compatible with R11, R22, R134a, R404A, R410A and all major halogenated refrigerants including HFC, CFC, HCFC gases and blended refrigerants. - High Sensitivity Leak Detection

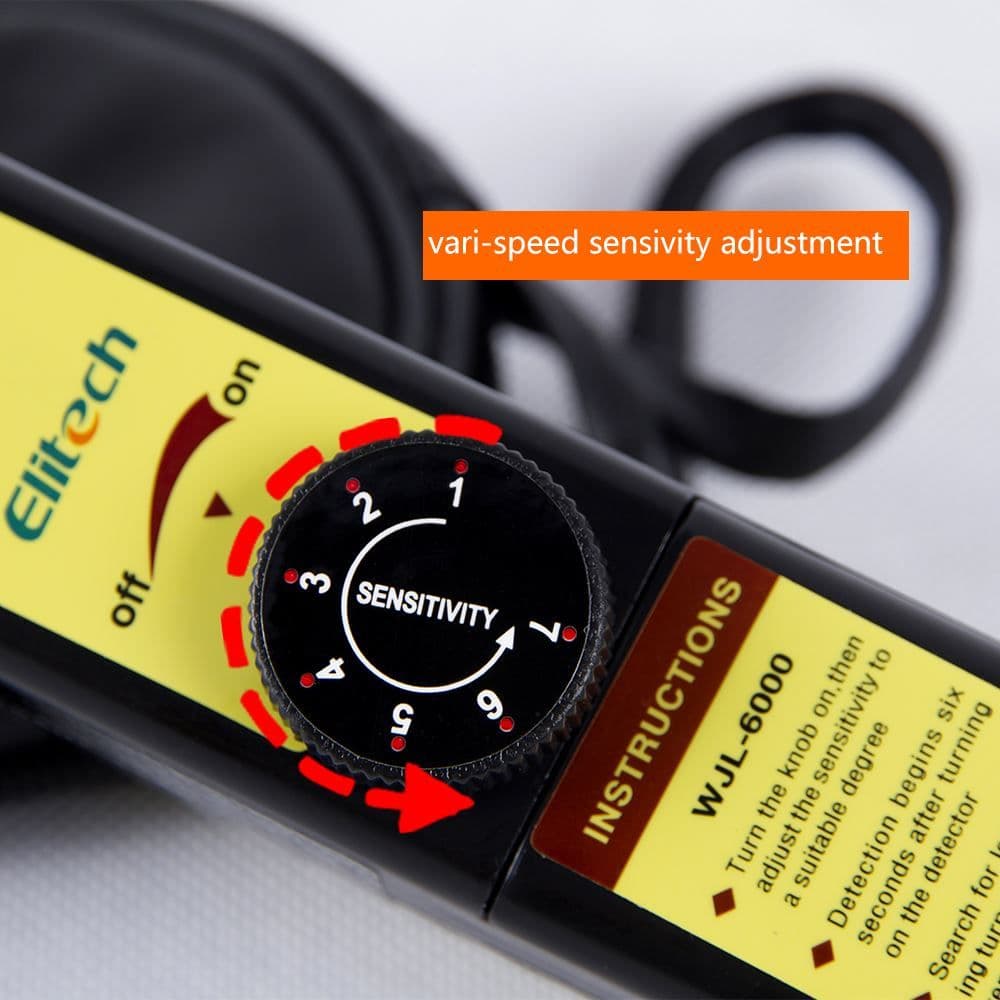

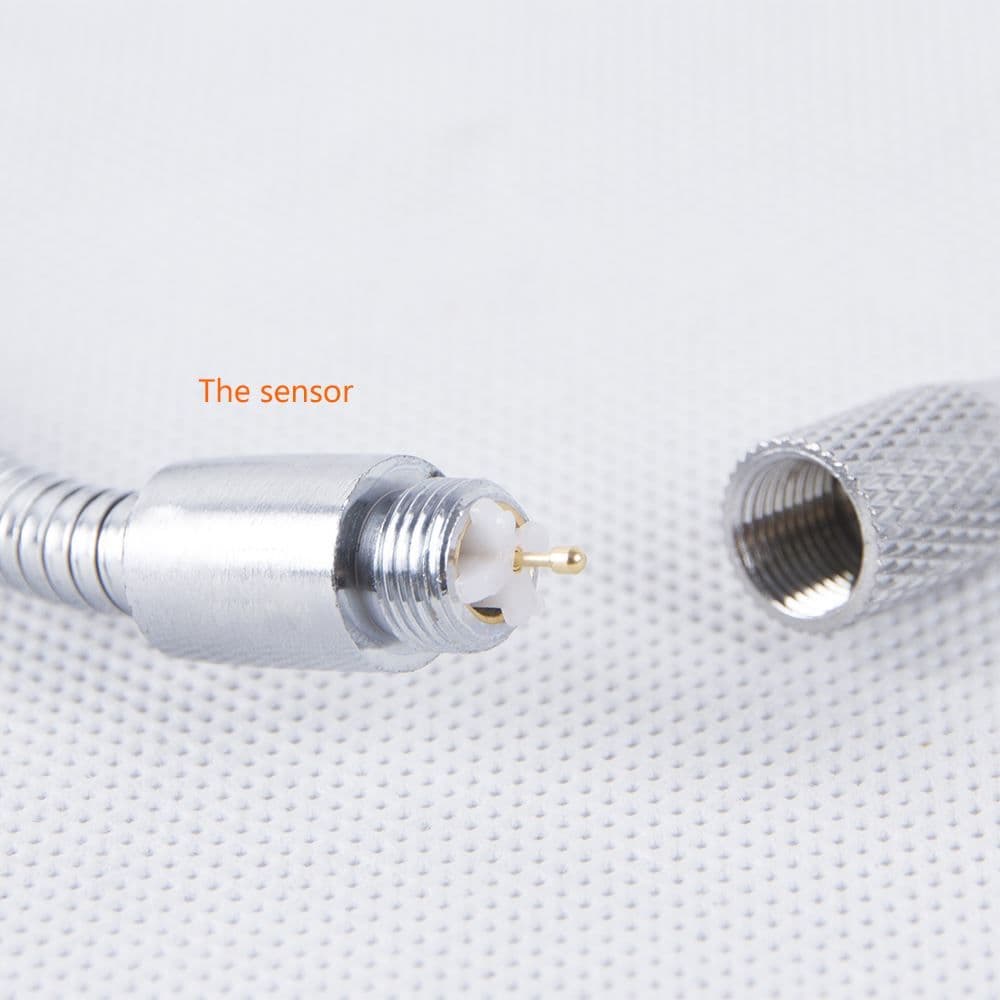

Advanced sensor technology with sensitivity up to 5g/year, allowing detection of even the smallest refrigerant leaks. - 7 Adjustable Sensitivity Levels
Multiple sensitivity settings help accurately locate leaks in different environments and operating conditions. - Fast Response Time
Provides rapid leak detection within 5 seconds for efficient troubleshooting and servicing. - 20cm Flexible Probe
Flexible gooseneck probe enables easy access to tight and hard-to-reach areas. - Battery Power Indicator
Dual-colour LED indicator shows battery status:- Green Light – Normal battery power
- Orange Light – Low battery warning
- Visual & Audible Leak Alarm
Built-in flashing LED indicators and buzzer alarm instantly alert users when refrigerant leakage is detected. - Ideal for HVAC & Refrigeration Applications
Suitable for servicing air conditioning systems, refrigeration units, heat pumps, and commercial cooling equipment.
Specifications
- Operating Temperature: 0°C to 52°C (30°F to 125°F)
- Maximum Sensitivity: 0.21 oz/yr – suitable for all halogenated refrigerants
- Response Time: Instantaneous
- Warm-Up Time: Approx. 6 seconds
- Reset Time: 2–10 seconds
- Operation Mode: Continuous, unlimited operation
- Battery Life: Approx. 50 hours of normal use
- Power Supply: 6V DC (4 x AAA alkaline batteries)
- Probe Length: 7.87 inches fixed probe
- Dimensions: 1.37 x 1.37 x 5.90 inches
Package Includes
- 1 x Refrigerant Leak Detector
- 1 x Carrying Handbag / Storage Case
- 1 x User Manual
Applications
Ideal for detecting leaks in:
- Air Conditioning Systems
- Refrigeration Equipment
- HVAC Systems
- Automotive AC Systems
- Commercial Cooling Equipment
