Modular Cold Rooms

Technical Info

Please call  0208 998 0033 or Email sales@crwltd.co.uk with your requirements so that we can offer the solution that is best for you.

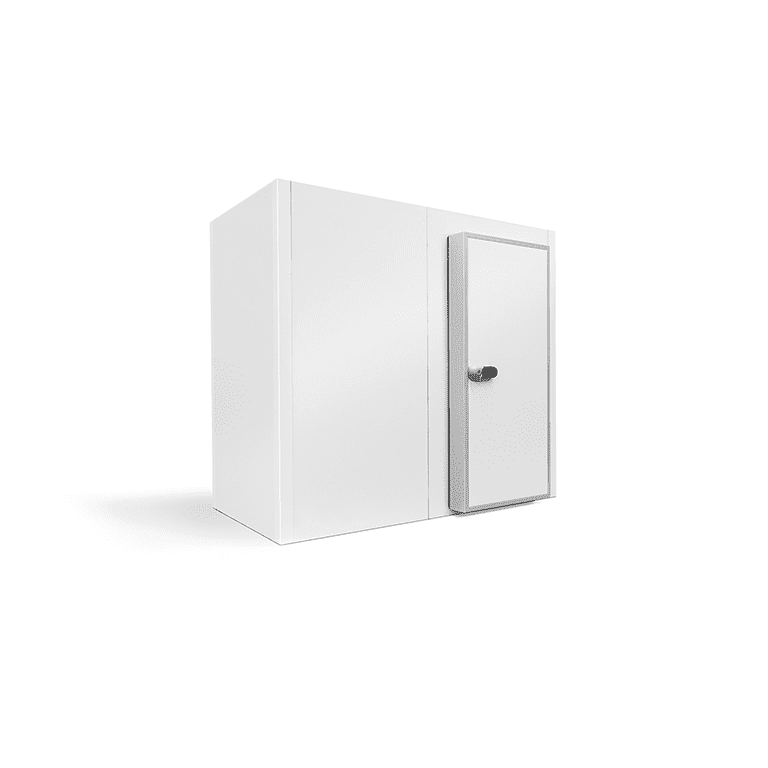

Modular, easy to install cold room & freezer rooms.

Available in over 600 sizes and made with 85mm foam core insulation panels.

Equipment selection is based on standard product load in normal conditions and for pre-frozen product load entering at -15c for freezers.

Please check suitability of equipment based on your product needs.

General specifications of panels:

• Modules from 200 mm to 200 mm.
• Thickness of 85 mm.
• Polyurethane (PUR) insulation injected at high pressure without CFCs with a density of 40 kg/m3 +/- 2.
• Euroclass B-s2,d0 certificates (reaction to fire).
• The connection between panels through a metal hook with anti-corrosion treatment.

Panel coating:

Pre-lacquered galvanized steel sheet with 25-micron polyester lacquer. Thickness 0.5 mm and with protective film.

Smooth lacquered interior color Pirineo White / RAL 9010.

Without floor features (85mm – Positive):

For positive temperatures (conservation) at 4 outdoor heights: 2.03 m; 2.23 m; 2.43 m, and 2.63 m.

It is supplied with a PVC U-coving for fixing to the floor to facilitate quick installation and support of the vertical panels. This coving includes a standard interior and exterior skirting, which ensures easy assembly and a perfect technical and aesthetic finish.

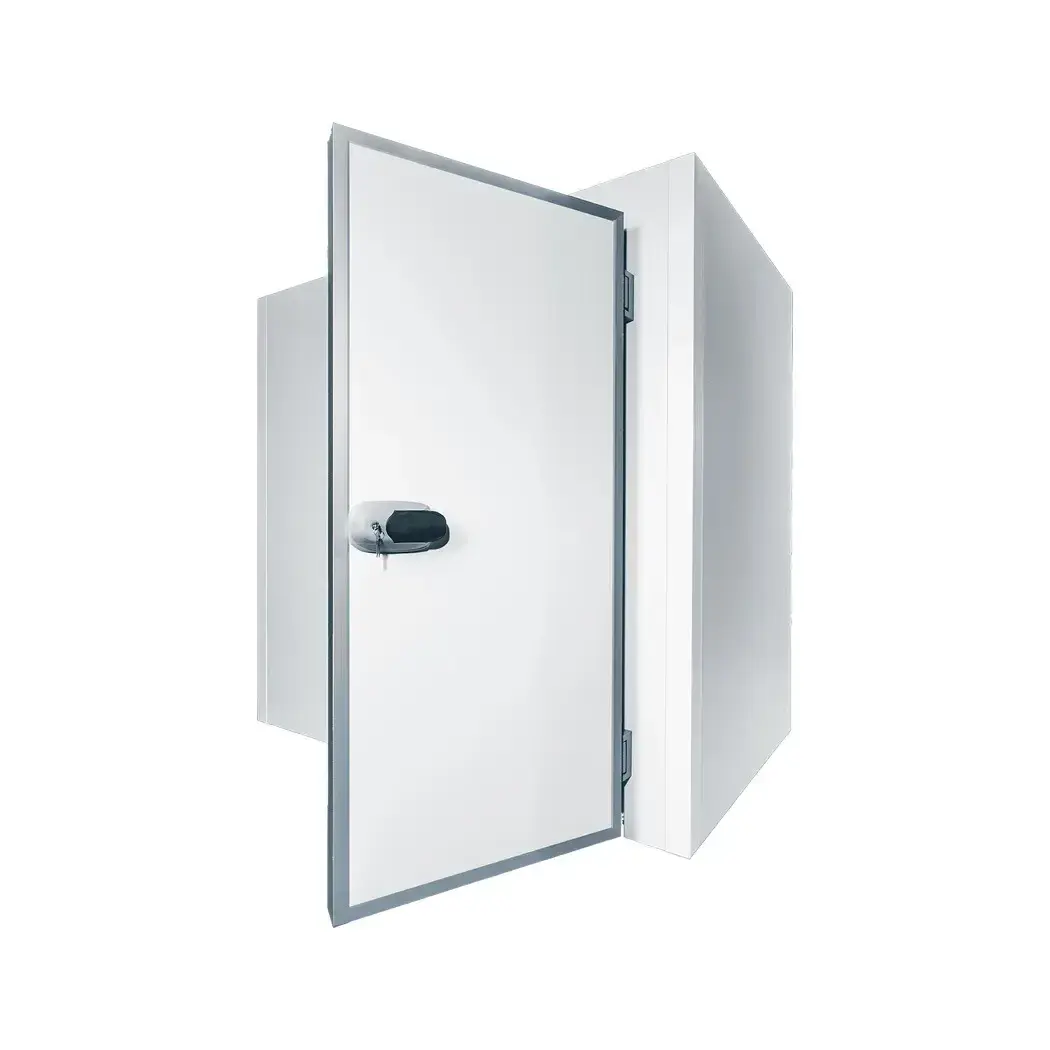

In addition, you can choose from different sizes of standard pivoting doors, with the possibility of shifting the sheet on the door panel to adapt to the features of the installation and to be applied on panels 1,000 and 1,200 mm wide.

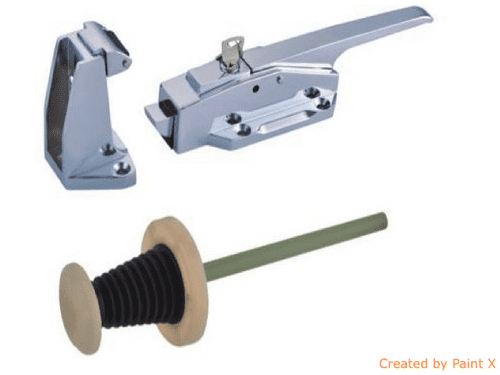

All our pivoting doors have a key lock, interior opening and right or left opening direction.

With floor features (85mm – Positive and Negative):

For positive (conservation) and negative (freezing) temperatures at 4 external heights: 2m (except 120 mm); 2.2m; 2.4m, and 2.3m.

It has a resistant non-slip phenolic resin coating with a Class 3 slip/skid Resistance Rating Certificate (the same as required in outdoor swimming pool areas).
